Model / Part No.
07AI91
Order / Part Code
GJR5251600R0202
Product ID
#22
Price (USD)
$1,180

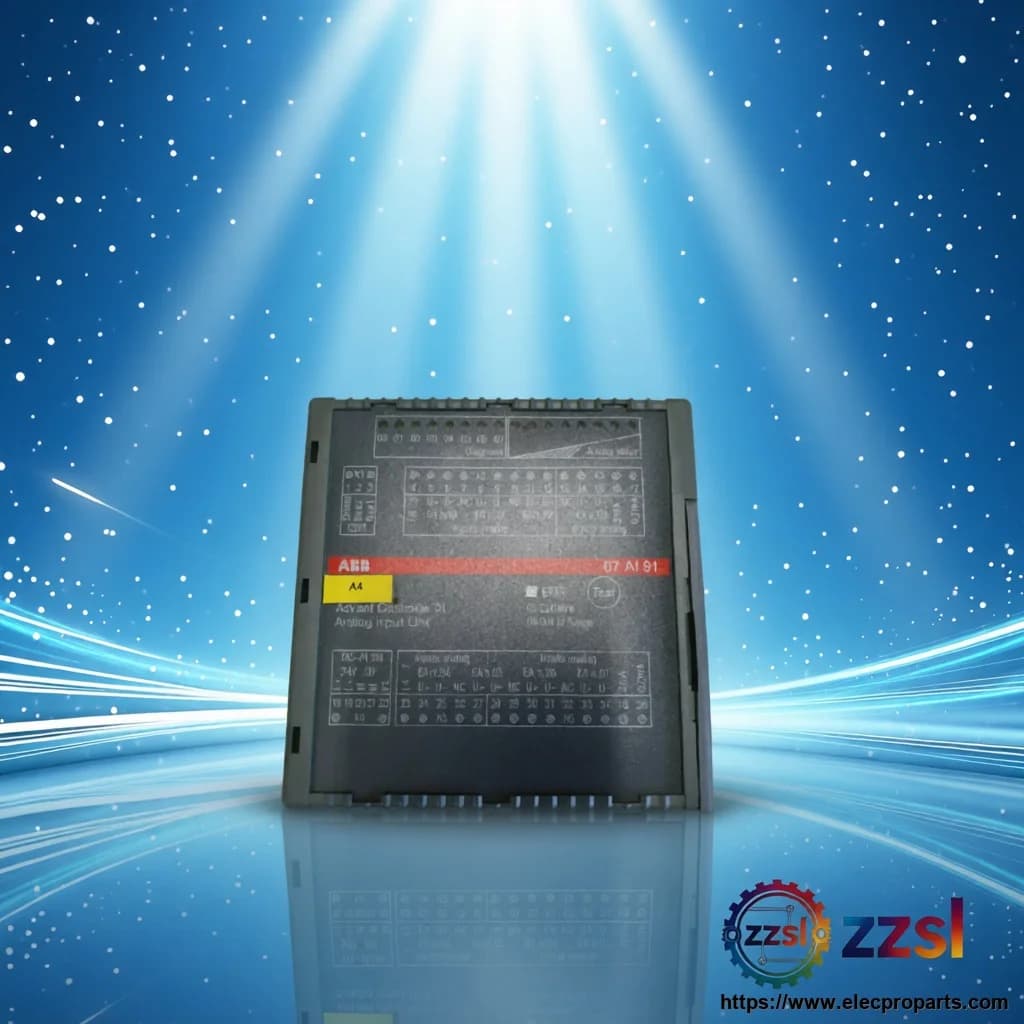

The ABB 07AI91 (GJR5251600R0202) is an 8-channel analog input module for the ABB AC31 / Advant Controller 31 system. Supports +/-50mV to +/-10V voltage, 0-20mA current (with 250 Ohm shunt), Pt100/Pt1000 RTD, and thermocouple types J, K, S. 12-bit+sign resolution, 24V DC, IP20. DIN rail mount with 17 diagnostic LEDs. Marine certified (ABS, DNV, GL, LR).
| Manufacturer | ABB |
| Model | 07AI91 |
| Order Code | GJR5251600R0202 |
| Series | AC31 / Advant Controller 31 |
| Type | Analog Input Module |
| Channels | 8 (configurable in pairs) |
| Resolution | 12-bit + sign |
| Signal Types | +/-50mV, +/-500mV, +/-5V, +/-10V, 0-20mA, Pt100, Pt1000, TC J/K/S |
| Supply | 24V DC, <=0.15A, <=3W |
| Temperature | 0 to 55 deg C |
| Protection | IP20 |
| Dimensions | 120x140x85 mm |
| Weight | 0.48 kg |
