Model / Part No.
10DX3111ADD17P1A2BK24321
Product ID
#110

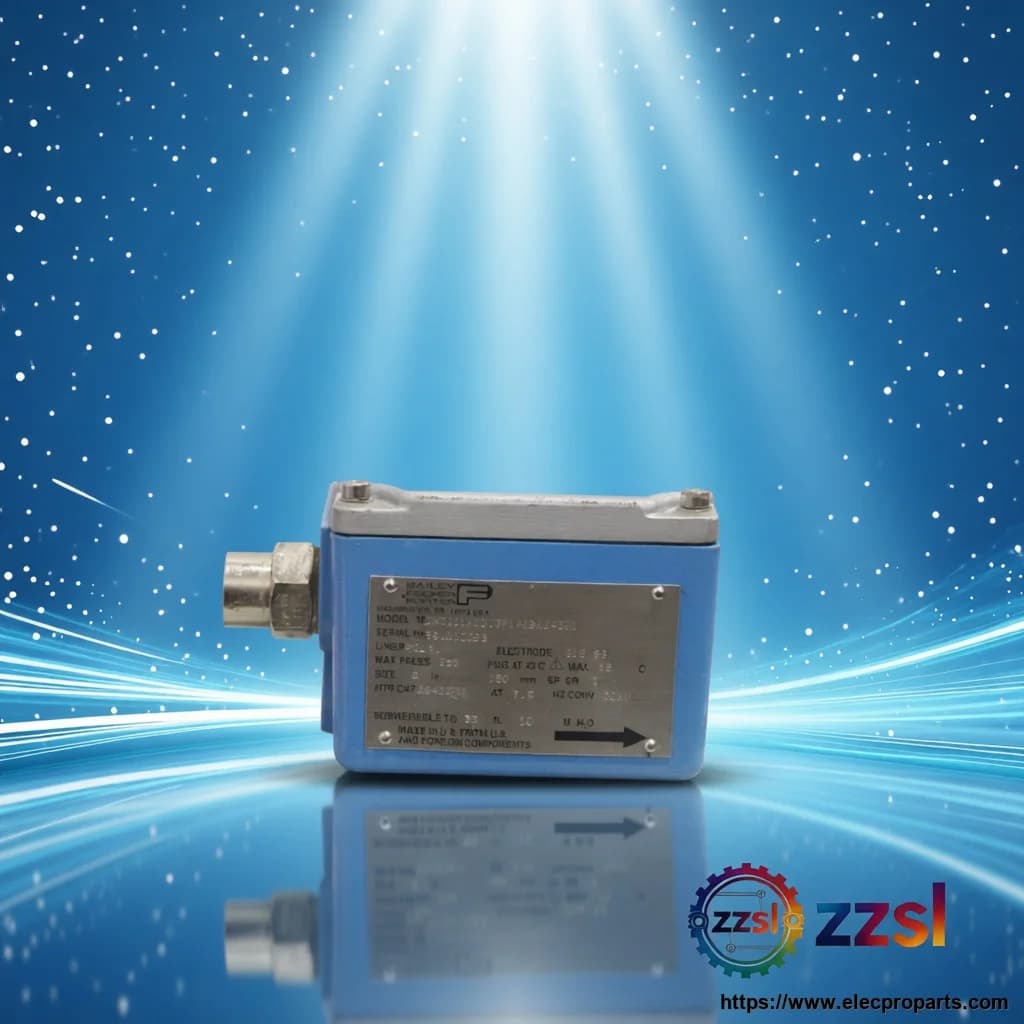

The ABB 10DX3111ADD17P1A2BK24321 belongs to the 10DX3111 magnetic flowmeter family documented in ABB installation manuals for the MAG-X Series 3000 and 50XM pulsed-DC magnetic flowmeter line. ABB documentation places 10DX3111 in the pulsed DC family alongside 10DX2111 and 10DX3112, with remotely mounted signal converters such as the 50XM2000 field-mount housing, and lists design levels A and G for sizes 14 through 24 inches. The trailing letters and digits of this full ordering code encode the liner, electrode, signal and process-connection options of the specific unit. Because ABB does not publish a decoded table for the complete suffix, those options should be confirmed against your existing meter before ordering.
| Manufacturer | ABB |
| Model Number | 10DX3111ADD17P1A2BK24321 |
| Family | 10DX3111 (pulsed DC magnetic flowmeter) |
| Product Type | Magnetic flowmeter primary with converter interface |
| Measurement Principle | Magnetic (Faraday) flow, pulsed DC |
| Liner / Electrode Material | Contact supplier for exact specifications (encoded in suffix) |
| Process Connection | Contact supplier for exact specifications (encoded in suffix) |
ABB MAG-X Series 3000 magnetic flow measurement with 50XM converters
The 10DX3111 base code is shared across size and option variants (10DX3111EDE07P1A2LA22121 and others differ only in suffix). Match the full suffix of your existing meter to guarantee identical construction.
