Model / Part No.
1SAP112100R0160
Product ID
#145

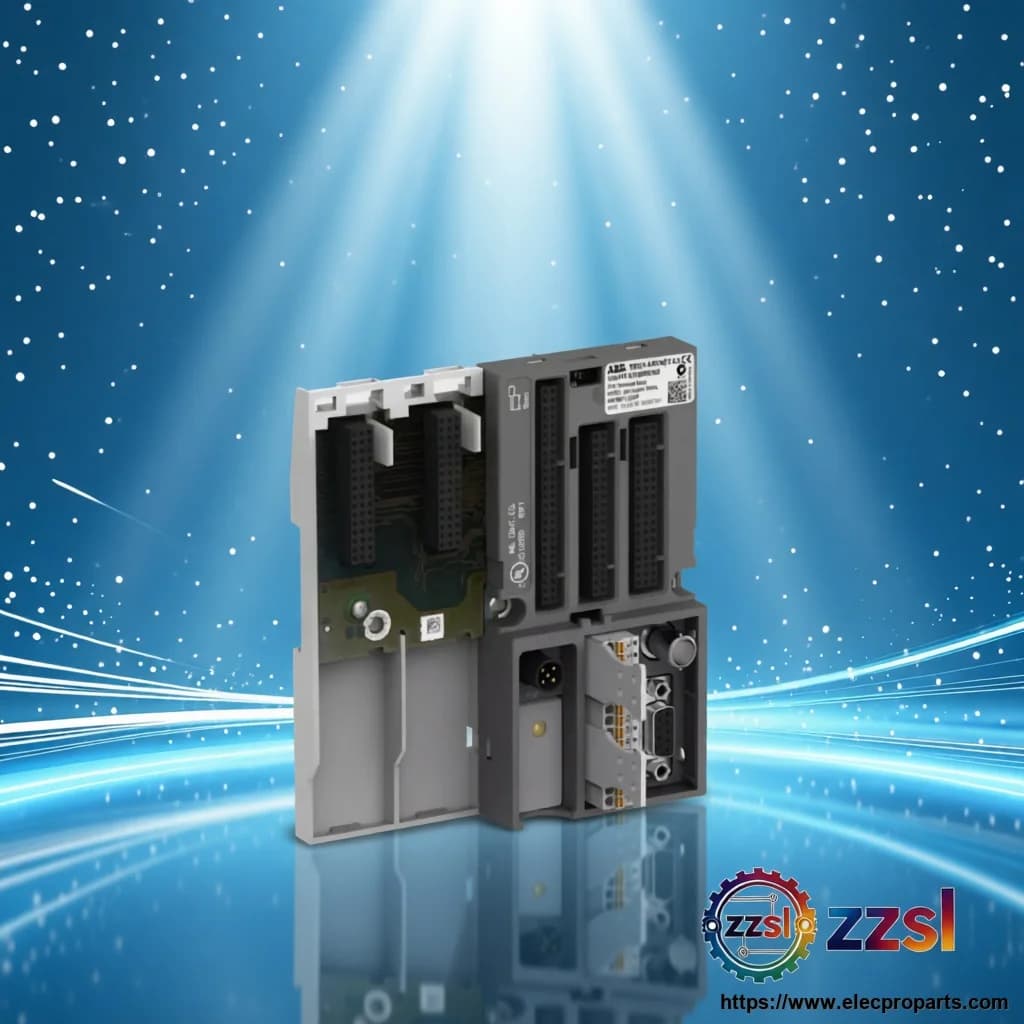

The ABB 1SAP112100R0160 is the order code for the TB521-ARCNET terminal base, a two-slot module carrier with an ARCNET interface for the ABB AC500 PLC family. ABB's own conformity documentation lists the code with the description TB521-ARCNET: AC500 module carrier with two slots, and ABB release notes discuss CPU compatibility limits with this base - for example PM590-ARCNET operating on TB521-ARCNET with limitations. Distributors offer the base as new stock and also list it as a CPU module replacement for ARCNET-configured AC500 systems. Because ARCNET bases are being superseded by Ethernet variants, confirm CPU compatibility and stock status with the supplier before ordering.
| Manufacturer | ABB |
| Model Number | 1SAP112100R0160 |
| Type Designation | TB521-ARCNET |
| Slots | 2 slots for CPU / communication modules |
| Interface | ARCNET |
| Supply | 24 VDC (per catalog family description) |
| Terminal Style | Contact supplier for exact specifications |
ABB AC500 PLC family with ARCNET communication
TB521 family: 1SAP112100R0160 (ARCNET), 1SAP112100R0170 (ETH, spring terminals), 1SAP112100R0270 (ETH, current). ABB documentation marks some CPU/base combinations as limited - verify compatibility.
