Status: Discontinued / Obsolete
Contact us for compatible replacement options.
This part is no longer manufactured. We can source limited stock or suggest alternatives — send inquiry below.
Model / Part No.
1SAP120900R0071
Product ID
#149

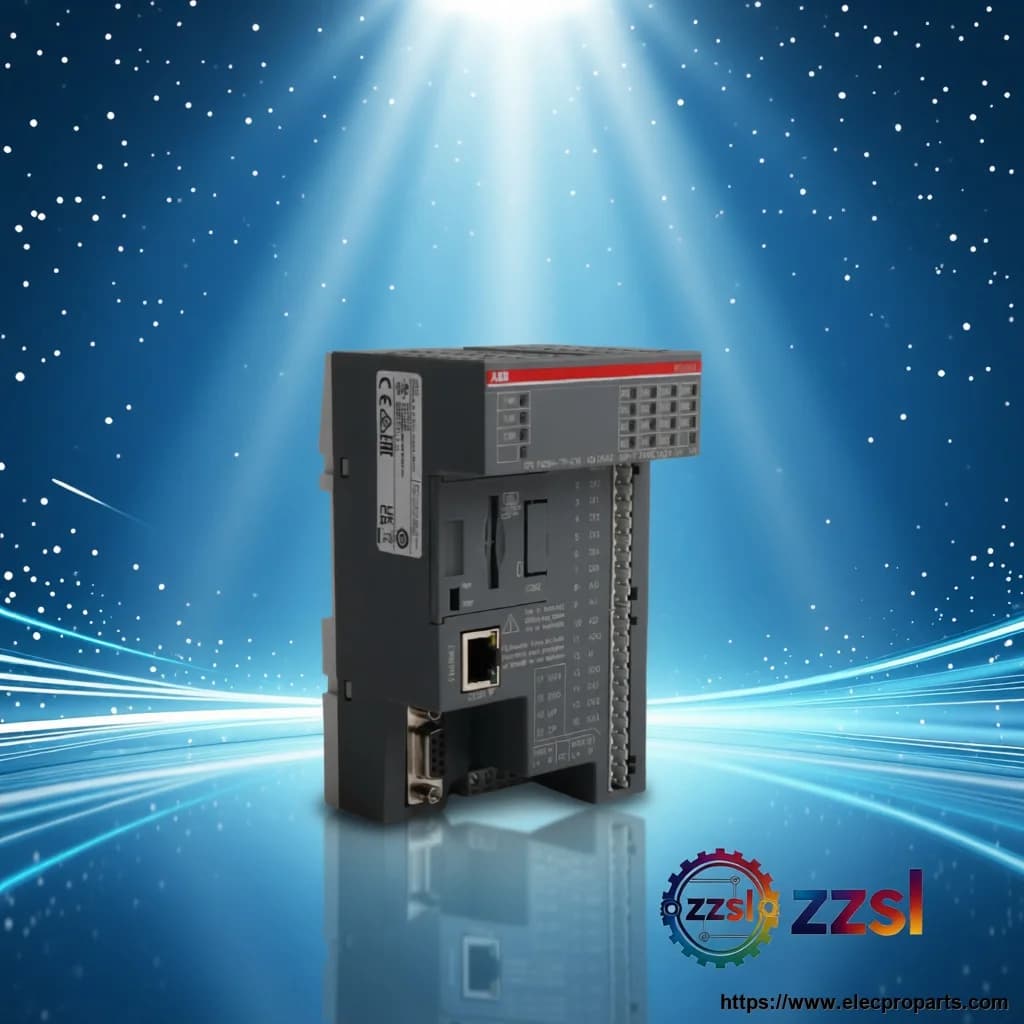

The ABB 1SAP120900R0071 is the order code for the PM564-TP-ETH CPU of the AC500-eCo PLC range, documented in ABB's product catalog as PM564-T-ETH with 6 digital inputs, 6 digital outputs, 2 analog inputs, 1 analog output, an Ethernet interface and 24 VDC supply, with 128kB of program memory. Distributor listings confirm the same code as an AC500-eCo Ethernet CPU, and one distributor marks the product discontinued by the manufacturer, so availability depends on remaining new or refurbished stock. The unit combines processing and built-in I/O for compact machines, making it a direct replacement spare for installed PM564-TP-ETH controllers.
| Manufacturer | ABB |
| Model Number | 1SAP120900R0071 |
| Type Designation | PM564-TP-ETH |
| Program Memory | 128kB (per ABB catalog) |
| Digital I/O | 6 digital inputs / 6 digital outputs (per ABB catalog) |
| Analog I/O | 2 analog inputs / 1 analog output (per ABB catalog) |
| Supply | 24 VDC with Ethernet interface |
ABB AC500-eCo PLC systems
PM564 family: PM564-T (1SAP120800R0001 base), PM564-T-ETH (1SAP120900R0071), PM564-R variants (1SAP121000R0071 and similar). Ethernet suffix -ETH distinguishes network-equipped versions.
