Model / Part No.
1SAP121000R0071
Product ID
#150

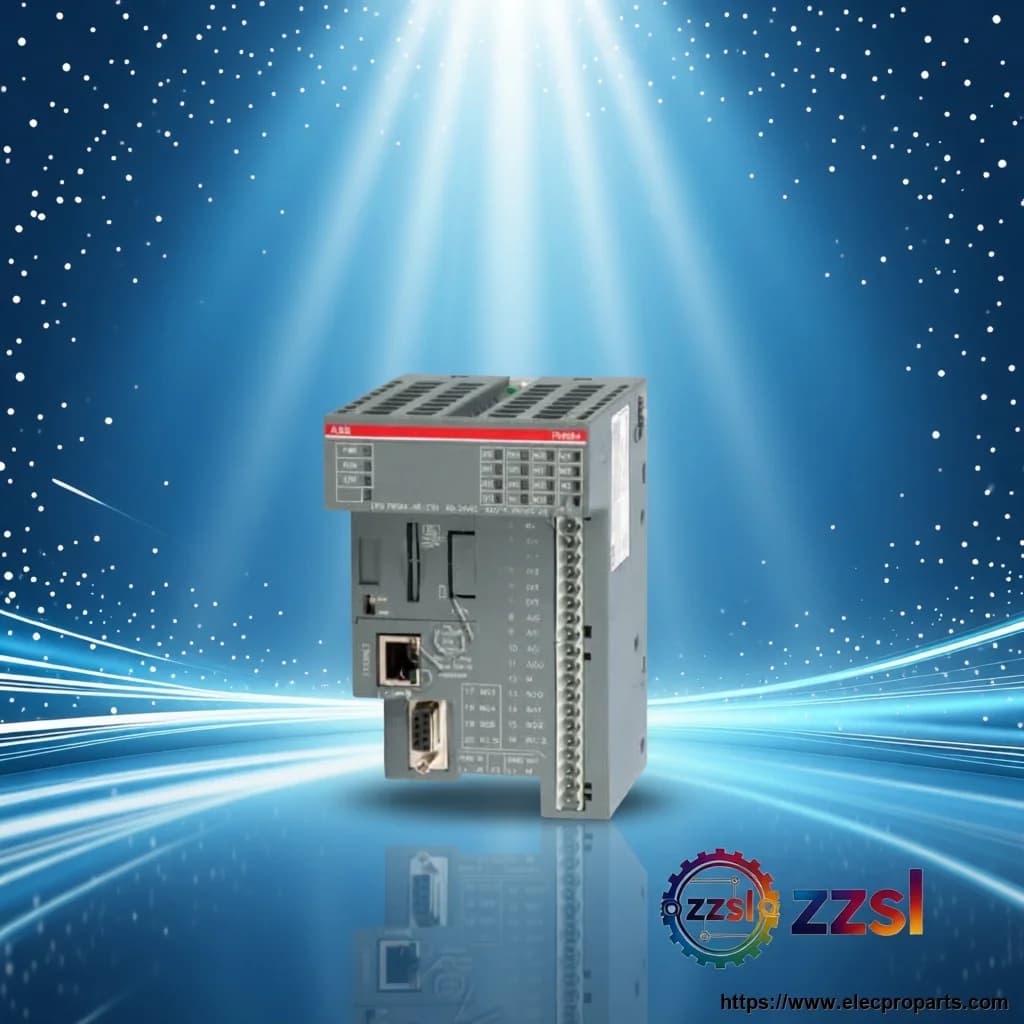

The ABB 1SAP121000R0071 is the order code for the PM564-RP-ETH CPU of the AC500-eCo PLC range, documented in ABB's product catalog as PM564-R-ETH with 6 digital inputs, 6 digital outputs, 2 analog inputs, 1 analog output, an Ethernet interface and 24 VDC supply. Distributor descriptions add 128kB of program memory, one RS485 serial port and option slots, matching the R-type base configuration of the PM564 family. Units are offered refurbished and new by multiple specialists with warranty. The CPU combines processing with integrated I/O for compact machines and is a direct replacement spare for installed PM564-RP-ETH controllers.
| Manufacturer | ABB |
| Model Number | 1SAP121000R0071 |
| Type Designation | PM564-RP-ETH |
| Program Memory | 128kB (per distributor description) |
| Digital I/O | 6 digital inputs / 6 digital outputs (per ABB catalog) |
| Analog I/O | 2 analog inputs / 1 analog output (per ABB catalog) |
| Interfaces | Ethernet, 1x RS485 (per distributor description) |
ABB AC500-eCo PLC systems
PM564 family: T-type (PM564-TP-ETH, 1SAP120900R0071) versus R-type (PM564-RP-ETH, 1SAP121000R0071); AC variants use 1SAP121100R0071. Match the base style of your installation.
