Model / Part No.
23AE23
Product ID
#347

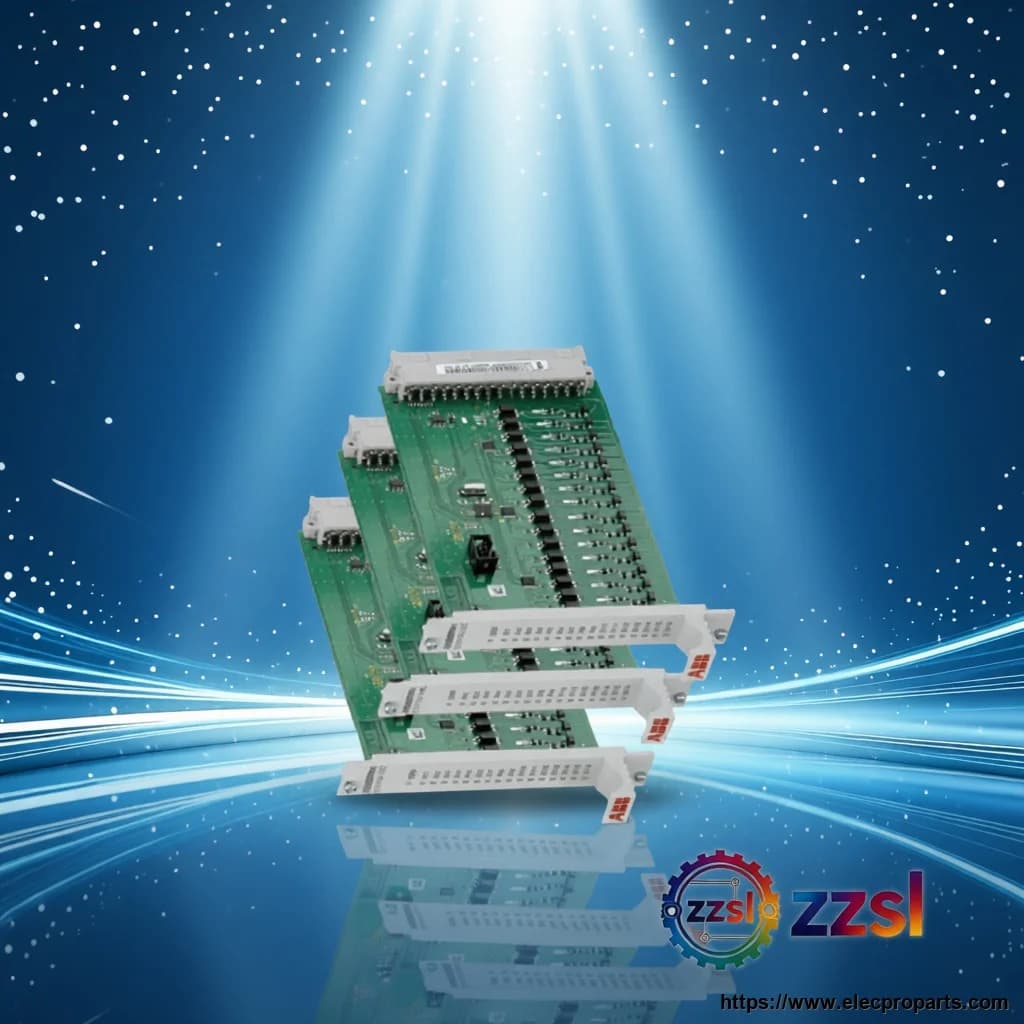

The ABB 23AE23 is identified on ABB product listings as the 23AE23 Analog Input Board, a analog input module for ABB RTU560 remote terminal units. Verified details: 8 differential inputs with ranges +/-2/5/10/20/40 mA and +/-2 V, 0-20 V DC; 12 bit + sign resolution; 5 V / 190 mA. It is cross-referenced as 23AE21 (compatible). The unit is supplied as a genuine ABB spare part or certified replacement, making it a direct fit for maintenance, repair and spares programs on ABB RTU560 remote terminal units. Each unit is offered with full traceability and professional technical support for identification and fitment. Exact order-code variants and revision levels should be confirmed with our team before ordering to ensure a drop-in replacement.
| Manufacturer | ABB |
| Model Number | 23AE23 |
| Cross Reference | 23AE21 (compatible) |
| Product Type | Analog input module |
| Channel Configuration | 8 differential inputs |
| Ranges | +/-2/5/10/20/40 mA, +/-2 V, 0-20 V DC |
| Resolution | 12 bit + sign |
| Supply | 5 V / 190 mA |
| Condition | New or refurbished |
| Warranty | Contact supplier for exact specifications |
ABB RTU560 remote terminal units
ABB uses order-code suffixes (for example revision letters and R0001/R1001/R3001 endings) to distinguish hardware revisions and regional variants of the 23AE23 Analog Input Board family. Confirm the complete order code and hardware revision from your nameplate before ordering to ensure a drop-in replacement.
